How to troubleshoot the FOB Reader:

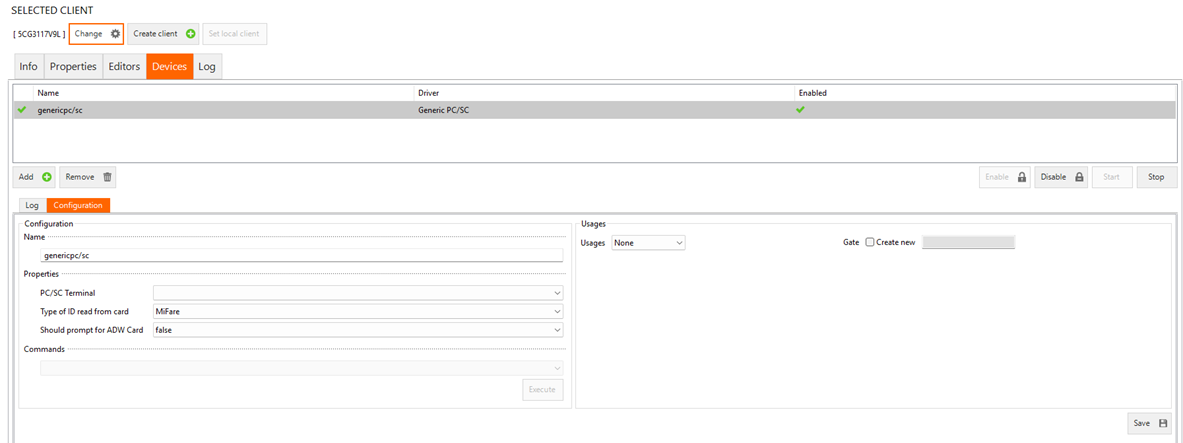

Go to Menu in Exerp –> Client and click on Devices.
The FOB reader is the one with driver name Generic PC/SC, select that one.
Should the reader not show up in the PC/SC Terminal, unplug it from the computer and plug it back in.
Restart Exerp and repeat this as many times as needed until the device shows up from the drop-down menu, using different USB ports if needed. We recommend plugging it directly into the computer if needed.
The Usages can either be set to None = Assigning new FOB’s or Attend = Signing members into classes. Depending on the usage, please select the correct one from the drop-down menu.
Don’t forget to press Save once you are finished. Go back to the Log tab and hit Refresh.
The device should have started successfully:
You can test the FOB reader to verify your action.
Should you need to remove the device and add it back in, please follow these steps below
(Please also follow these steps if you wish to add a new device to your computer)

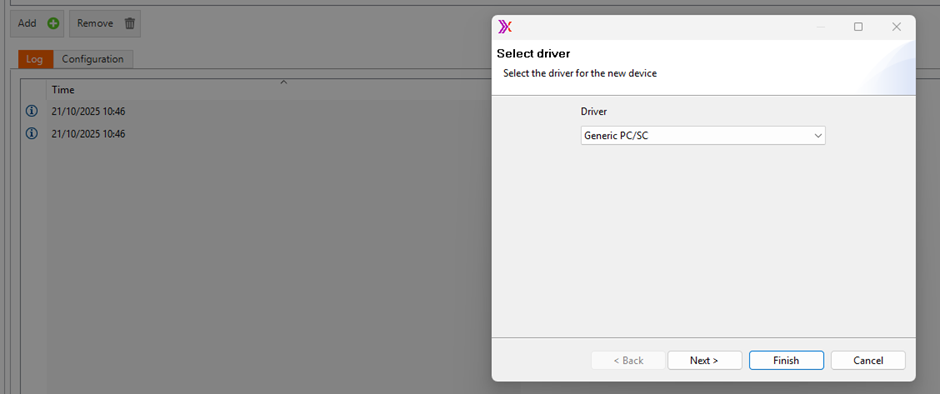

Click on Add – Select Generic PC/SC

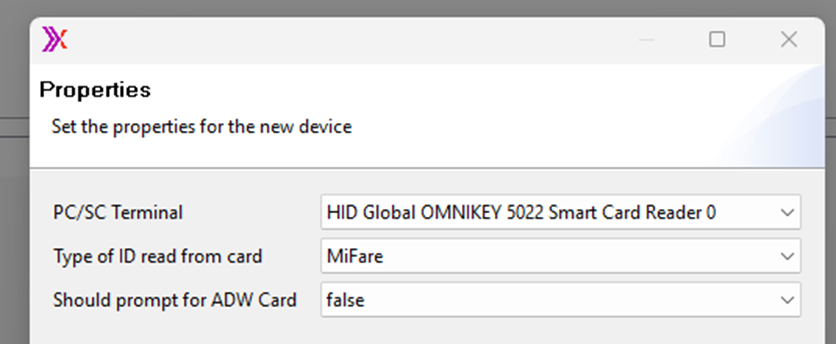

Click on Next and fill out the details per the below:

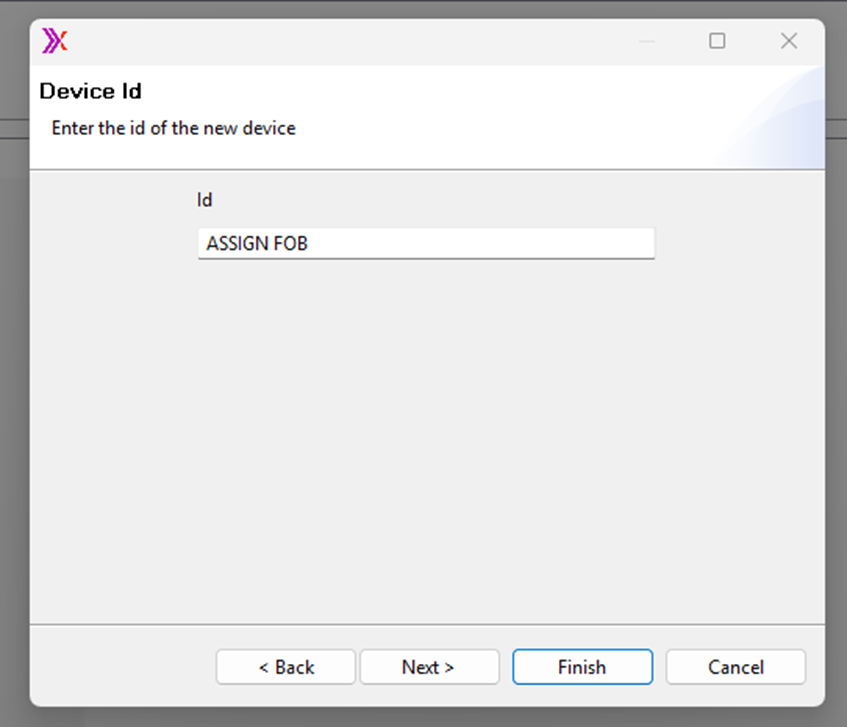

Click on Next and rename the device should you like:
Click on Finish.

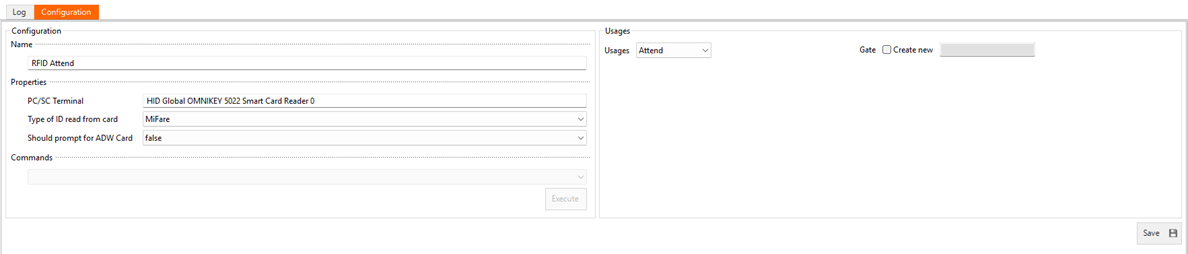

Choose your device from the Devices list, go to Configuration and set up the action. The Usages can either be set to None = Assigning new FOB’s or Attend = Signing members into classes.
Depending on the usage, please select the correct one from the drop-down menu and press Save.

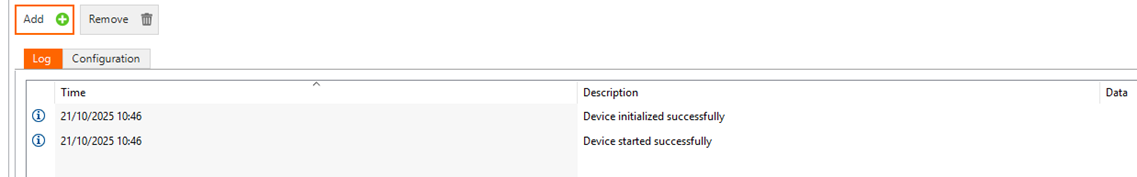

Go back to the Log tab and hit Refresh. The device should have started successfully:
Your FOB reader is now successfully connected. You can test the FOB reader to verify your action.
